2022 Zone RV Base 18.6 Off-Road Specs (ZB-18.6)
🎨Internal Colour
• Manhattan Base
• Cabinets, Titanium
• Overheads, White gloss
• Flooring, Grey brushed Oak
• Lounge material, Slate synthetic leather
📏 Dimensions
• Internal length: ~5.640 m (18’6”)
• External travel length: ~7.950 m
• Internal Width: ~2.290 m
• External travel width: ~2.500 m
• Internal height: ~1.980 m
• External travel height: ~3.200 m
0⚖️ Weights
• Tare Weight with options ~2546 kg
• ATM: 3500 kg
• Ball weight: ~180–230 kg (varies with load)
• Payload: ~954 kg
🏗️ Chassis & Construction
• Zone RV Off Road Chassis
• Hot-dipped galvanised steel off-road chassis
• Front stoneguard and mudflaps
• Stabiliser legs x 4
• Heavy duty manual jockey stand
• Full closed cell composite body fibreglass sandwich panels
• Panel bonding technology
• J Moulded External seal
• One piece composite floor panel
• Mid fitted stone guard
• Sealed hatches, dust/water resistant build
🛞 Suspension, Hitch & Brakes
• Cruisemaster XT Airbag suspension dual axle with manual side panel control
• D0-35 Hitchmaster articulating off-road hitch
• 12” electric drum brakes + ESC
• Brake safe system
🛞 Wheels & Tyres
• Black load rated 16” steel slotted wheels
• Cooper Discoverer AT3 all-terrain LT265/75R16
• 1 rear-mounted spare
• Stud pattern 6 x 139.7~0 offset
• Electronic stability control unit
🔋 Power & Electrical
• Solar: ~720 Watts
• Batteries: 2 × 200Ah Enerdrive BTEC Lithium
• Enerdrive 40A AC, DC/DC Charger with wireless
Monitoring
• System: Enerdrive Manager
• 2600W Enerdrive ePower inverter
• Internal & external 240V & 12V with USB power points
• 50A Anderson plug for vehicle charging
• Hard wired vehicle GPS odometer
💧 Water Capacity & Features
• Fresh: ~ 2x 90 Ltr
• Grey: 100Ltr
• 12V water pump with inline cassette water filtration
• Isolation taps for water control
• Non penetrating water tank monitoring system
• Mains water pressure system
🍳 Kitchen
• Offroad alloy plating system for added strength
• Soft closing kitchen storage drawers with positive locking latches
• 3-burner Thetford gas cooktop
• Microwave oven
• Large compressor fridge / freezer ~190L Bushman
• Slide-out pantry
• Large bench top + sink
🛏️ Interior & Layoutt
• Premium entry door
• LED lighting throughout, dimmable over bed LED lighting
• Queen bolstered innerspring bed with pillow top gas strutted with large storage under neath
• Bedside hanging wardrobe storage with USB & 12V charging points
• Overhead locker storage
• Padded upholstered bed head

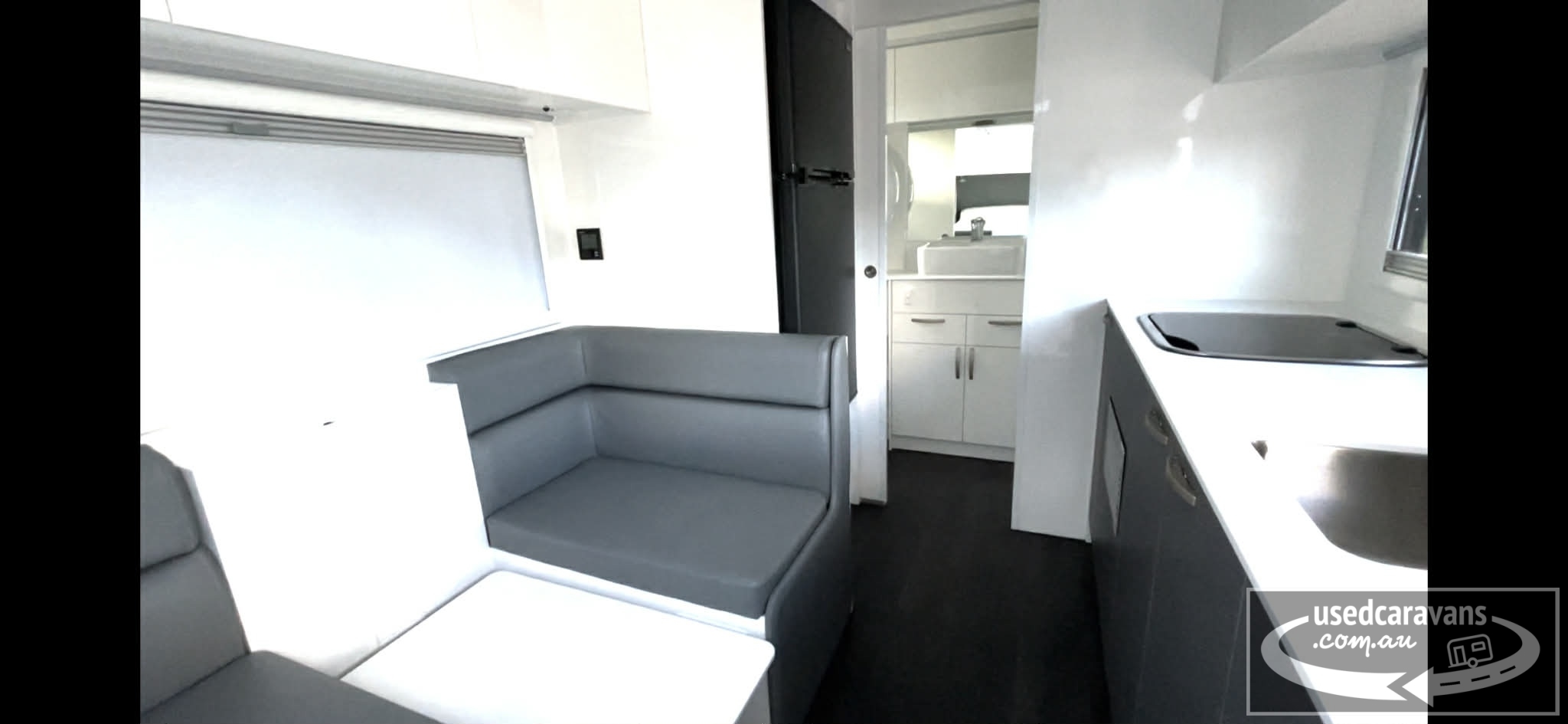

• Seating: U-shaped lounge + dinette with rotating and height adjustable table
• Table can be dropped for single bed
• Windows: Double glazed with block out blinds & insect screens
❄️ Heating & Cooling
• Truma Aventa reverse cycle air conditioning with remote
• Truma 4E combo (gas + electric) water & heating system
• Electric roof vents proof push with rain sensors
• Fans: 2 x Sirocco 12V wall mounted fans
🚿 Bathroom & Ensuite
• Full internal ensuite
• Large internal shower cubicle with fully adjustable shower head can be hand held

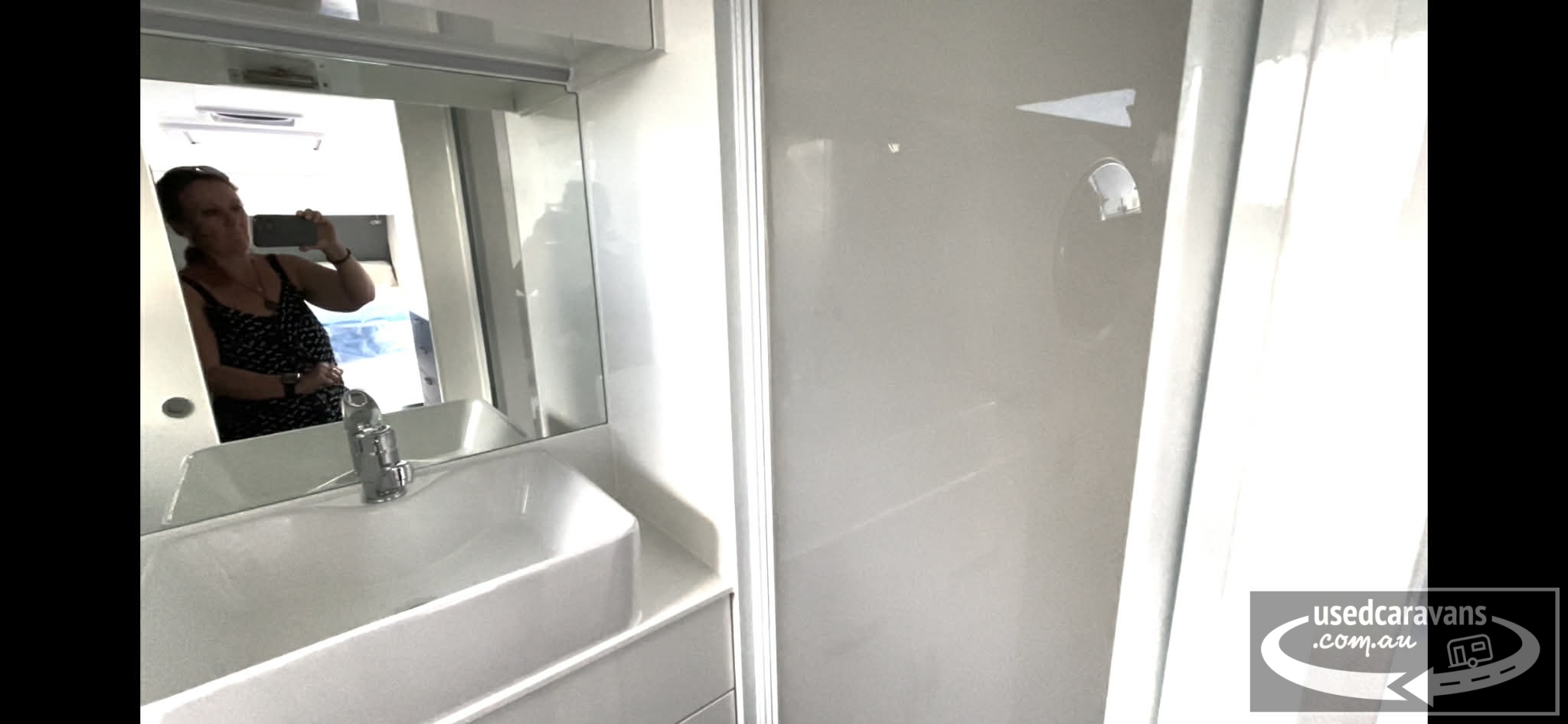

• Ceramic vanity basin with stylish mixer
• Double towel rail
• Large storage in overhead cabinets with vanity drawers and cupboard area

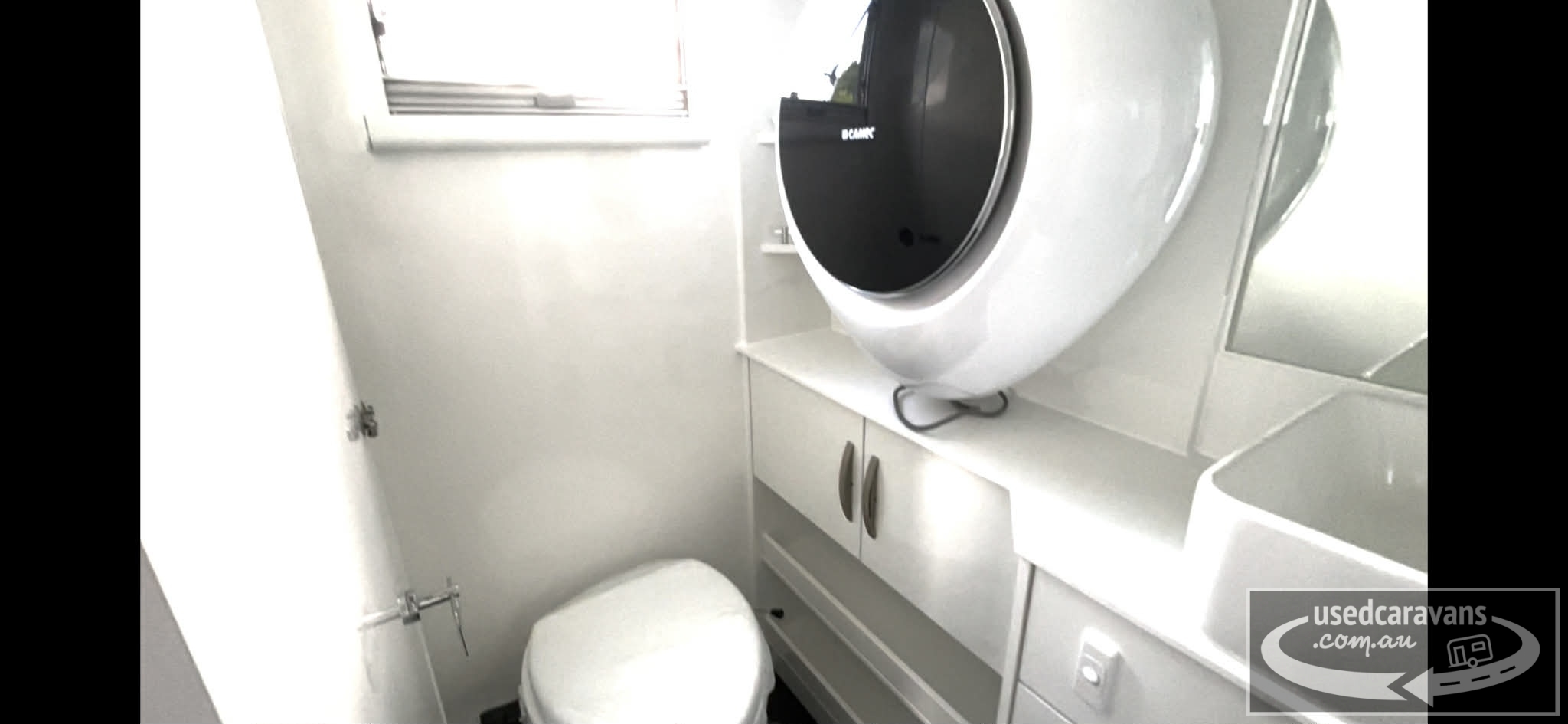

• Composting toilet 2022 Nature’s Head

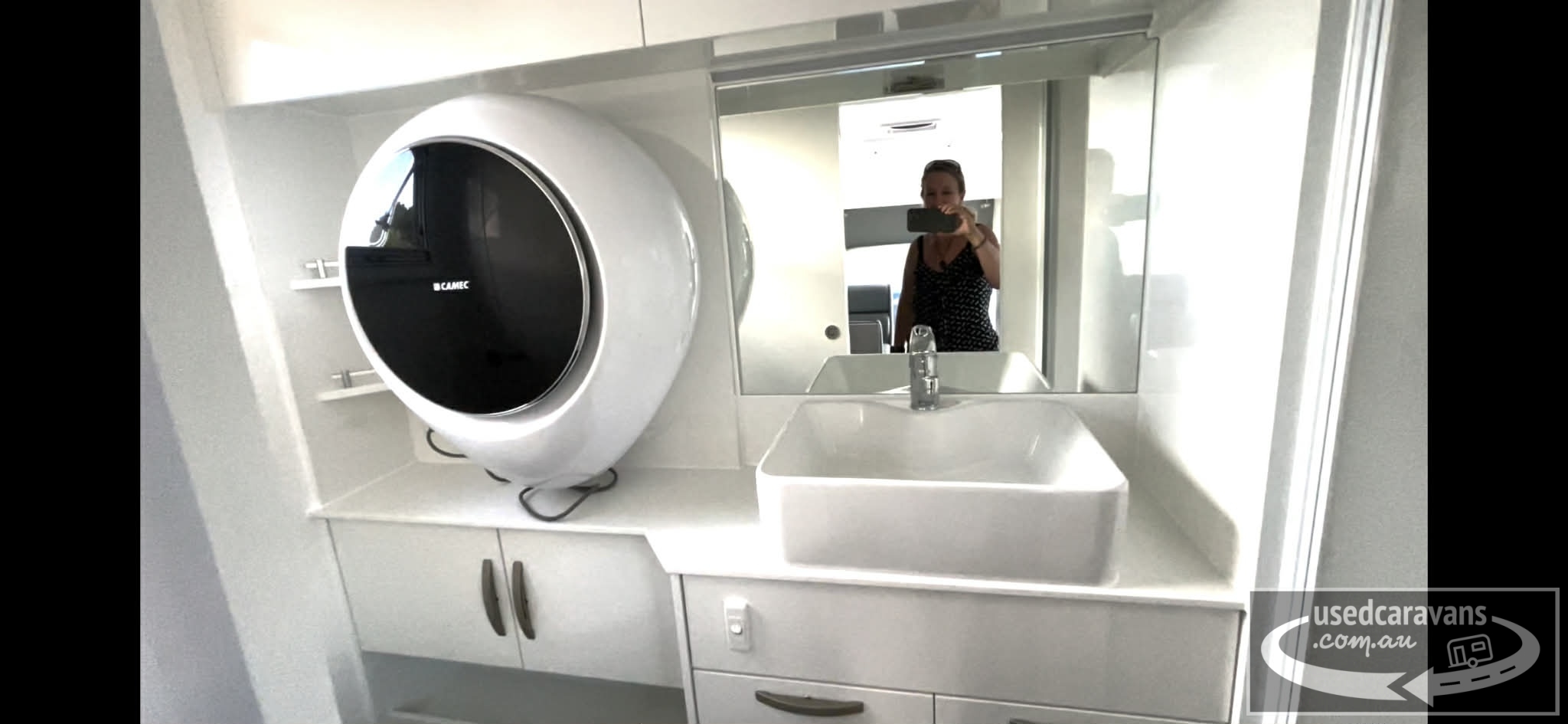

• Washing machine Camec 2.5 kg
🧰 External Features
• Manual double entry steps
• Marine grade access hatches triple sealed with lockable latches
• External lockable water tap drawbar mounted with stone deflector
• Dual external gas bayonet fittings
• Front toolbox with dual side slide-out
• Large dual access tunnel boot storage with internal lighting & 12V power outlet
• 2 x awning lights with orange bug free mode
• Roll-out awning
• Anti flap kit & wall mount brackets
• Twin awning tension rails
• Awning arm protection pads velcro
• Reverse camera with 5.8” In car screen

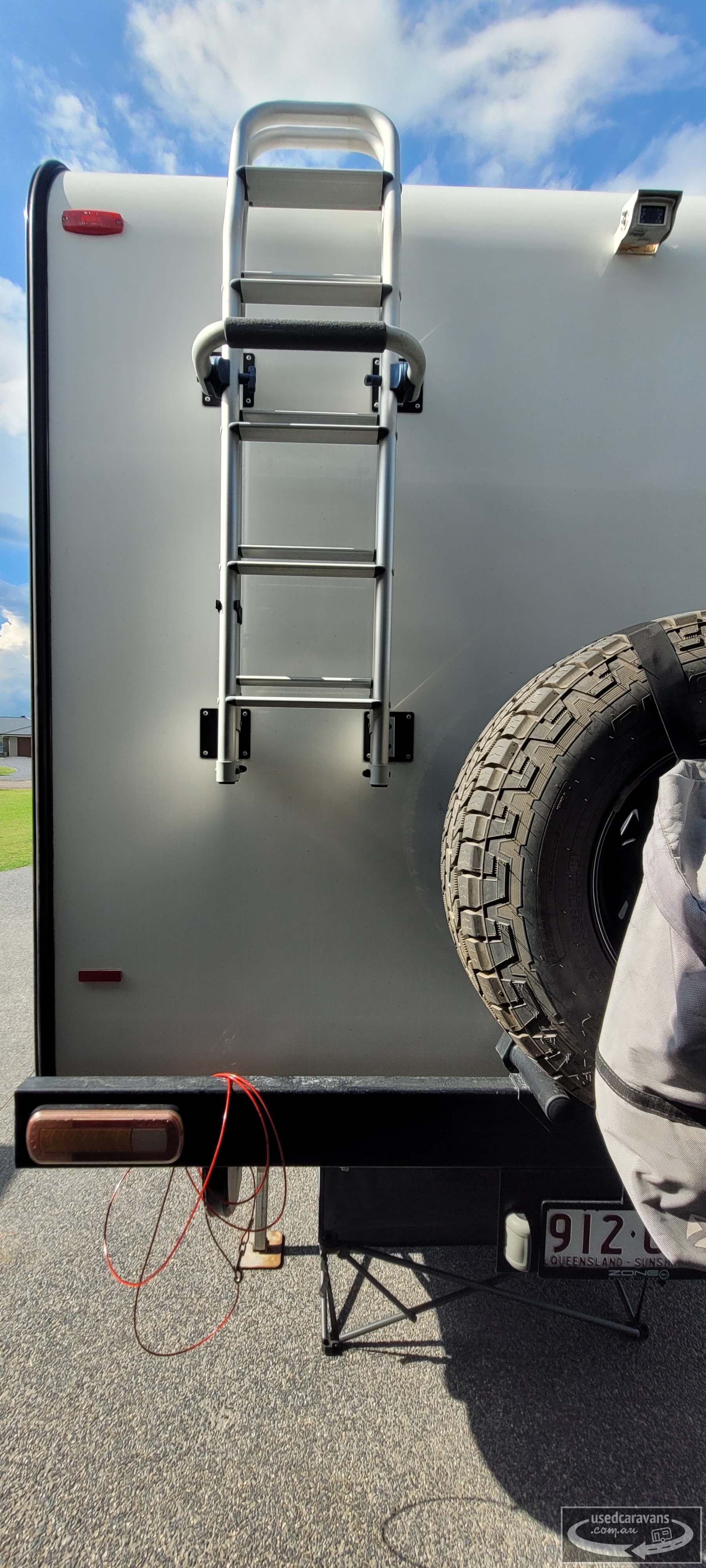

• Rear to roof folding 10 step access ladder
• External shower connection
• Front mounted Max tracks x 2
• External TV mounting bracket
🎬 Internal entertainment & Security
• Fusion sound panel AM / FM with bluetooth and USB connection
• High definition 24” 12V smart TV
• Internal TV mount with antenna connection and power points
• Roof mount digital TV antenna
• Portable VANSAT easy view satellite system
• Cel-Fi Go 4G mobile signal boosting system with rear mounted external whip antenna
• WiTi Anti-theft security system
